Applications:
- For measuring locations with a high differential pressure overload and/or high working pressures (static pressures), also in aggressive ambience
- For gaseous, liquid, particulates-containing, viscous and aggressive media
- Monitoring and control of pumps
- Filter monitoring
- Level measurement in closed tanks
Special Features:
- Differential pressure measuring ranges from 0 … 60 mbar
- High working pressure (static pressure) and high overload safety up to 40, 100, 250 or 400 bar
- Hydraulic cushioning protection against rapid pressure changes
- Compatible with switch contacts and transmitters

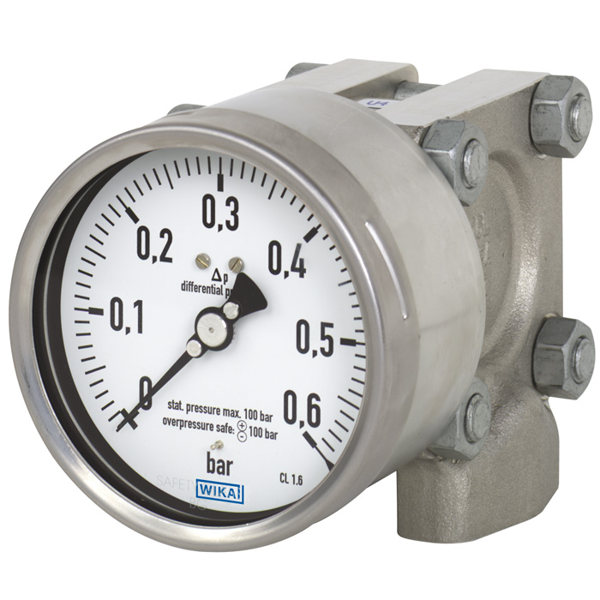

- Model 762.14: Monel version
Description:
- These differential pressure gauges are made of highly corrosion-resistant stainless steel. A high overpressure safety is achieved by the all-metal construction and the close-fitting design of the pressure measuring diaphragm.
- With its high-grade stainless steel construction and robust design this pressure gauge is geared to chemical and process engineering applications.
- It is suitable for gaseous or liquid media, also in aggressive ambience.
- The wetted parts for these instruments are available also in special materials such as Monel or Hastelloy.
- The scale ranges of 0 … 60 mbar to 0 … 40 bar are available to meet the requirements of a wide variety of applications.
